Description

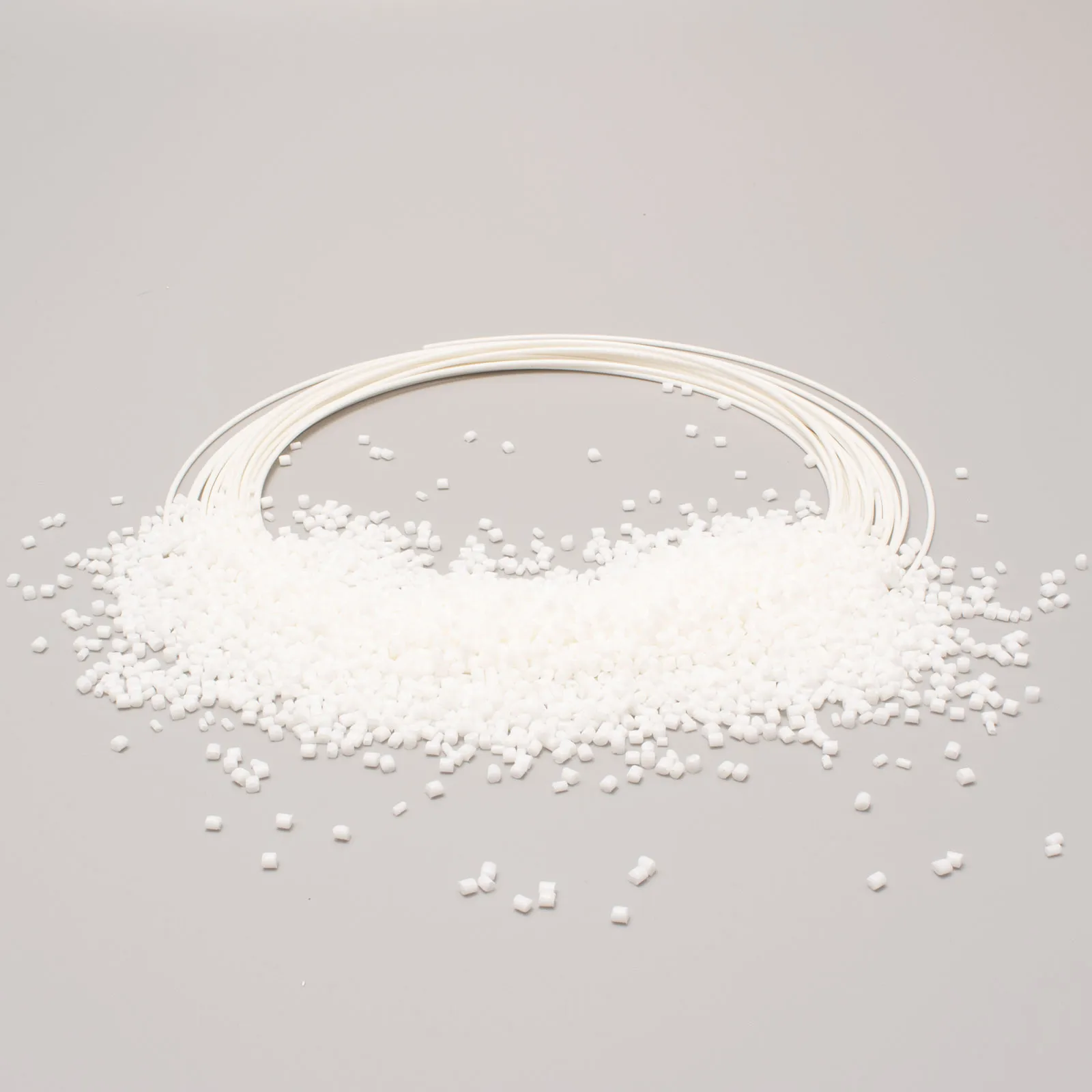

LATIGEA B20 AM UVH TES/10 is a technical PLA (polylactic acid) based compound on 100% biobased resin filled with mineral fillers. UV- and hydrolysis-stabilized, easily processable and colourable, it guarantees good dimensional stability and heat resistance above 100°C after fast annealing. Optimised for both 3D printing from filament (FFF) and direct 3D printing from granule (FGF).
Base polymer PLA HT
Fillers/Reinforcements Mineral filler
Chemical-physical properties UV- and hydrolysis-stabilized
Thermal properties Improved thermal resistance
“Green” version Biobased
3D Printing Very good aesthetics/compatibility, Suitable also for printing from pellets
Granule drying conditions 60°C
Filament extrusion conditionsExtrusion temperature: 200°C – 210°C
Filament drying temperature: 60°C
Filament drying temperature: 60°C
3D printing conditionsExtruder temperature: 210°C – 220°C
Bed temperature: 0°C – 50°C
Cooling: ON
Post-annealing conditions: 100°C 1h
Other: Ideal CLOSED and thermostat-controlled ROOM
Bed temperature: 0°C – 50°C
Cooling: ON
Post-annealing conditions: 100°C 1h
Other: Ideal CLOSED and thermostat-controlled ROOM
